HIGHFIELD
the Highfield difference
Highfield’s hulls are dry-riding, very seaworthy and always over-built. Their reputation for durability is now world-renowned and are the world’s number one in the 15 foot+ rib tender sector. Their heavy-duty approach to design and build allows leisure and commercial owners to have the confidence needed to go that extra mile and to tackle all conditions.
+ Zero warranty claims on leaking boats or delamination of material.
+ Customizable to customer needs pre/post sale of vessels.
+ In house engineering & designs, owned and operated by Highfield directly.
SPORT SERIES
The new Sport includes 11 new RIB models from 10’ to 26’ that redefine the perfect RIB. High-end luxury features combined with a durable high performance aluminum hull give you the best of both worlds.

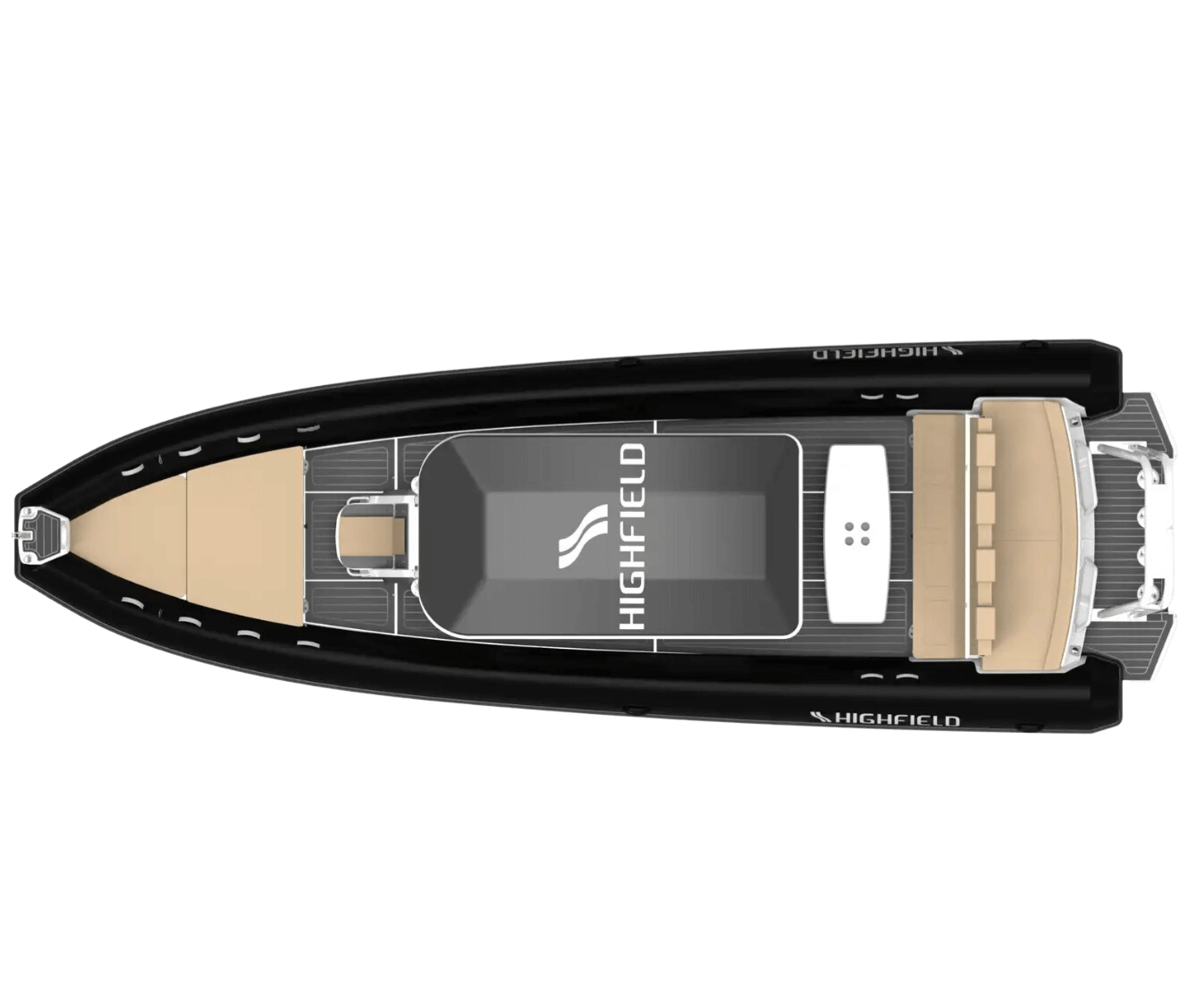

sport 900
The all-weather hull design and long range capability will ensure that you maximise your time on the water so you really can dare to explore like never before. Built-in dining area with refrigerator and shower system complete the picture of the right boat for an excellent day on the water.
-
Length: 29’ 11”
Beam: 10’ 2”
Inside Length: 26’ 2”
Inside Beam: 6’ 0”
Weight: 3730 lbs
Max People: 15
Max Payload: 3512 lbs
Max HP: 600 hp
Fuel Tank: 91 gal
Transom: X-Long
Chambers: 6
Tube Dia: 23”
Deadrise: 26°
SP 900 Color Options
sport 800
There is more than one driving position due to the flip up standing bolster. There is a wide bow boarding step with roller and cleat for easy anchoring and while at anchor, lots of room to hang out in the wide comfortable bow seating area.
-
Length:
Beam:
Inside Length:
Inside Beam:
Weight:
Max People:
Max Payload:
Max HP:
Fuel Tank:
Transom:
Chambers:
Tube Dia:
Deadrise:
SP 800 Color Options
Sport 600/660/700/760
These larger models combine the efficiency and high performance of our aluminum hulls with deluxe outfitting. Built-in seating and large consoles allow for flexibility in instrumentation and layout. Brushed EVA teak flooring, internal LED convenience lighting, recessed cleats & high quality upholstery set this range apart from the competition. Tow post with mounted stern light and sun deck cushions available as options to give you a range of uses.
sp 760
-
Length: 25’ 0”
Beam: 9’ 6”
Inside Length: 19’ 4”
Inside Beam: 5’ 7”
Weight: 2161 lbs
Max People: 16
Max Payload: 3865 lbs
Max HP: 300 hp
Fuel Tank: 60 gal
Transom: X-Long
Chambers: 6
Tube Dia: 23”
Deadrise: 26°
sp 700
-
Length: 23’ 7”
Beam: 9’ 7”
Inside Length: 17’ 8”
Inside Beam: 5’ 7”
Weight: 2255 lbs
Max People: 14
Max Payload: 3312 lbs
Max HP: 250 hp
Fuel Tank: 60 gal
Transom: X-Long
Chambers: 6
Tube Dia: 23”
Deadrise: 26°
sp 660
-
Length: 21’ 4”
Beam: 8’ 6”
Inside Length: 15’ 7”
Inside Beam: 4’ 5”
Weight: 1631 lbs
Max People: 13
Max Payload: 2837 lbs
Max HP: 200 hp
Fuel Tank: 30 gal
Transom: X-Long
Chambers: 6
Tube Dia: 23”
Deadrise: 26°
sp 600
-
Length: 20’ 3”
Beam: 8’ 2”
Inside Length: 14’ 4”
Inside Beam: 4’ 4”
Weight: 1530 lbs
Max People: 14
Max Payload: 3214 lbs
Max HP: 150 hp
Fuel Tank: 30 gal
Transom: X-Long
Chambers: 6
Tube Dia: 22”
Deadrise: 26°
SP 600/660/700/760 Color Options
SPort 520/560
There is a wide bow boarding step with roller and cleat for easy anchoring, and lots of room to hang out in the upholstered bow seating area. Add the optional removable ski pole or towing arch for watersports, and take advantage of the huge rear transom area, complete with telescopic boarding ladder. *Rated for large parties of passengers.
sp 560
-
Length: 18’ 7”
Beam: 8’ 3”
Inside Length: 12’ 6”
Inside Beam: 4’ 5”
Weight: 1280 lbs
Max People: 12
Max Payload: 2619 lbs
Max HP: 115 hp
Fuel Tank: 21.6 gal
Transom: X-Long
Chambers: 6
Tube Dia: 20”
Deadrise: 24°
sp 520
-
Length: 17’ 2”
Beam: 8’ 1”
Inside Length: 11’ 3”
Inside Beam: 4’ 5”
Weight: 1136 lbs
Max People: 10
Max Payload: 2332 lbs
Max HP: 100 hp
Fuel Tank: 21.6 gal
Transom: Long
Chambers: 6
Tube Dia: 23”
Deadrise: 26°
SP 520/560 Color Options
SPORT 390/420/460
These mid-size models combine all the seagoing capabilities of our Patrol range, but with the looks and feel you demand of a family RIB. Internal fuel tanks on every boat keep your decks clear while the integrated rear bench with huge storage compartment makes carrying your gear for longer passages a breeze. Brushed EVA teak flooring, internal LED convenience lighting, recessed cleats & high quality upholstery set this range apart from the competition. Roll bars with mounted stern lights or rear tow posts and removable sun deck cushions available as options.
sp 460
-
Length: 15’ 1”
Beam: 6’ 10”
Inside Length: 9’ 7”
Inside Beam: 3’ 7”
Weight: 731 lbs
Max People: 9
Max Payload: 2011 lbs
Max HP: 90 hp
Fuel Tank: 11.6 gal
Transom: Long
Chambers: 5
Tube Dia: 19”
Deadrise: 20°
sp 420
-
Length: 13’ 11”
Beam: 6’ 9”
Inside Length: 8’ 11”
Inside Beam: 3’ 7”
Weight: 681 lbs
Max People: 8
Max Payload: 1744 lbs
Max HP: 70 hp
Fuel Tank: 11.6 gal
Transom: Long
Chambers: 4
Tube Dia: 19”
Deadrise: 20°
sp 390
-
Length: 12’ 10”
Beam: 6’ 4”
Inside Length: 8’ 2”
Inside Beam: 3’
Weight: 497 lbs
Max People: 7
Max Payload: 1579 lbs
Max HP: 60 hp
Fuel Tank: 6.3 gal
Transom: Long
Chambers: 3
Tube Dia: 19”
Deadrise: 20°
SP 390/420/460 Color Options
SPORT 300/330/360
The smallest Sports offer a wide deck, built-in rear seat, quilted diamond upholstery, and low profile console for an unbeatable level of comfort and storage capacity. Also standard are built-in navigation lighting, welded towing eyes, LED convenience lights, and an automatic bilge pump with manual override.
sp 360
-
Length: 11’ 11”
Beam: 6’ 0”
Inside Length: 7’ 9”
Inside Beam: 3’ 0”
Weight: 473 lbs
Max People: 6
Max Payload: 1398 lbs
Max HP: 40 hp
Fuel Tank: 6.3 gal
Transom: Long
Chambers: 3
Tube Dia: 17”
Deadrise: 20°
sp 330
-
Length: 11’ 0”
Beam: 6’ 0”
Inside Length: 6’ 8”
Inside Beam: 2’ 11”
Weight: 439 lbs
Max People: 5
Max Payload: 1211 lbs
Max HP: 30 hp
Fuel Tank: 6.3 gal
Transom: Long
Chambers: 3
Tube Dia: 17”
Deadrise: 20°
sp 300
-
Length: 9’ 10”
Beam: 6’ 0”
Inside Length: 5’ 11”
Inside Beam: 2’ 9”
Weight: 385 lbs
Max People: 4
Max Payload: 1023 lbs
Max HP: 30 hp
Fuel Tank: portable
Transom: Long
Chambers: 3
Tube Dia: 17”
Deadrise: 20°
SP 300/330/360 Color Options

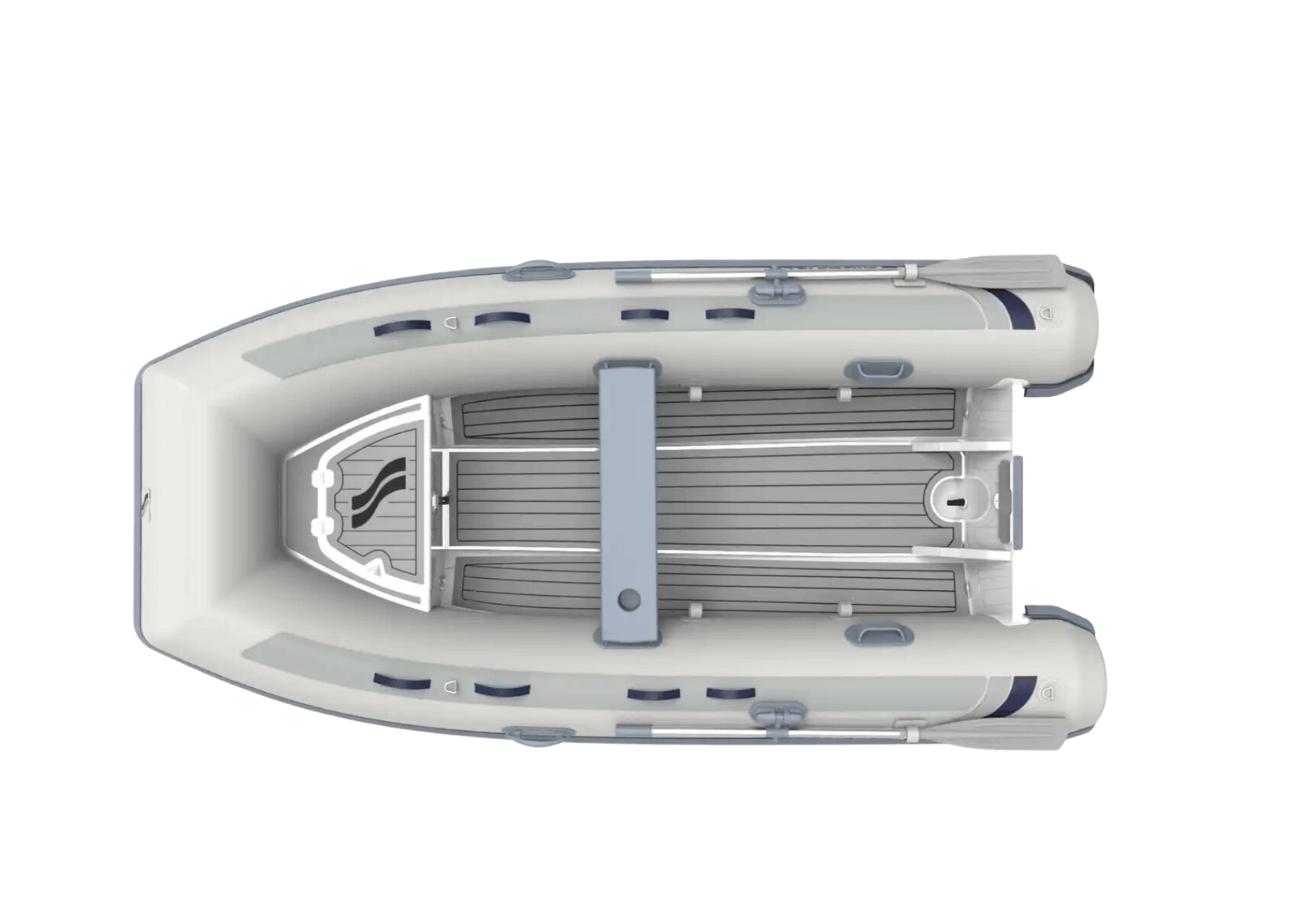

Classic open SERIES
The Classic series of open RIBS are lightweight and durable. Built with a double deck to keep your feet dry and with an extra large bow locker for storage, the high quality finish and luxury look of these dinghies mean they are designed to work hard.
CLASSIC 380
-
Overall Length: 12’ 6”
Beam: 5’ 7”
Inside Length: 9’ 5”
Inside Beam: 2’ 7”
Weight: 183 lbs
Max People: 7
Max Payload: 1404 lbs
Max HP: 30 hp
Transom: S or L
Chambers: 3
Tube Dia: 17”
Deadrise: 15”
CLASSIC 360
-
Overall Length: 11’ 10”
Beam: 5’ 7”
Inside Length: 8’ 9”
Inside Beam: 2’ 7”
Weight: 165 lbs
Max People: 6
Max Payload: 1237 lbs
Max HP: 30 hp
Transom: S or L
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
CLASSIC 340
-
Overall Length: 11’ 2”
Beam: 5’ 7”
Inside Length: 8’ 1”
Inside Beam: 2’ 7”
Weight: 157 lbs
Max People: 6
Max Payload: 1215 lbs
Max HP: 25 hp
Transom: S or L
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
CLASSIC 310
-
Overall Length: 10’ 2”
Beam: 5’ 7”
Inside Length: 7’ 5”
Inside Beam: 2’ 7”
Weight: 137 lbs
Max People: 5
Max Payload: 1213 lbs
Max HP: 20 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
CLASSIC 290
-
Overall Length: 9’ 6”
Beam: 5’ 7”
Inside Length: 6’ 9”
Inside Beam: 2’ 7”
Weight: 130 lbs
Max People: 4
Max Payload: 1058 lbs
Max HP: 20 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
CLASSIC 260
-
Overall Length: 8’ 6”
Beam: 5’ 7”
Inside Length: 5’ 9”
Inside Beam: 2’ 7”
Weight: 119 lbs
Max People: 3+1
Max Payload: 794 lbs
Max HP: 15 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadrise: 10.5°
Classic Console SERIES
The Classic Console series are the perfect combination of early planing and lightweight performance of all Classic Series boats combined with a choice of helm and layout. A Classic Console gives you lightweight, durability and amazing space in a small console RIB.
FCT-7 console is an all-in-one seating and steering approach, with built-in navigation lights and switches and new carbon dash.
GT replaces the helm arm with a separate fiberglass console and upholstered side seat. Both options have automatic bilge pump and master battery switch, making these excellent options for those wanting comfort and light weight in a capable tender.
CLASSIC 460
-
Overall Length: 15’ 1”
Beam: 6’ 11”
Inside Length: 11’ 7”
Inside Beam: 3’ 5”
Weight: 627 lbs
Max People: 9
Max Payload: 2081 lbs
Max HP: 80 hp
Transom: Long
Chambers: 5
Tube Dia: 19”
Deadrise: 20°
CLASSIC 420
-
Overall Length: 13’ 10”
Beam: 6’ 11”
Inside Length: 10’ 5”
Inside Beam: 3’ 5”
Weight: 552 lbs
Max People: 8
Max Payload: 1814 lbs
Max HP: 60 hp
Transom: Long
Chambers: 4
Tube Dia: 19”
Deadrise: 20°
CLASSIC 380 FCT | GT | GT limited
-
Overall Length: 12’ 6”
Beam: 5’ 7”
Inside Length: 9’ 5”
Inside Beam: 2’ 7”
Weight: 183 lbs
Max People: 7
Max Payload: 1404 lbs
Max HP: 30 hp
Transom: S or L
Chambers: 3
Tube Dia: 17”
Deadrise: 15”
CLASSIC 360 FCT | GT | GT limited
-
Overall Length: 11’ 10”
Beam: 5’ 7”
Inside Length: 8’ 9”
Inside Beam: 2’ 7”
Weight: 165 lbs
Max People: 6
Max Payload: 1237 lbs
Max HP: 30 hp
Transom: S or L
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
CLASSIC 340 FCT | GT
-
Overall Length: 11’ 2”
Beam: 5’ 7”
Inside Length: 8’ 1”
Inside Beam: 2’ 7”
Weight: 157 lbs
Max People: 6
Max Payload: 1215 lbs
Max HP: 25 hp
Transom: S or L
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
CLASSIC 310 FCT
-
Overall Length: 10’ 2”
Beam: 5’ 7”
Inside Length: 7’ 5”
Inside Beam: 2’ 7”
Weight: 137 lbs
Max People: 5
Max Payload: 1213 lbs
Max HP: 20 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
Classic Color Options (open and console)
PATROL Series
The Patrol series puts safety, toughness and reliability first and is the ultimate choice for those who need the best. This series offers a range of customizable cockpit layouts, giving options for a variety of seating and steering set-ups - ideal for yacht club chase boats, expedition operators, or private owners looking for the ultimate in a big, powerful RIB.
PATROL 860
-
Overall Length: 28’ 3”
Beam: 10’ 2”
Inside Length: 20’ 8”
Inside Beam: 6’ 0”
Boat Only Weight: 3069 lbs
Max People: 20
Max Payload: 4643 lbs
Max HP: 2x300hp
Fuel Tank: 91 gal
Transom: TwinXL
Chambers: 6
Tube Dia: 23”
Deadrise: 26°
PATROL 760
-
Overall Length: 25’ 0”
Beam: 9’ 6”
Inside Length: 19’ 4”
Inside Beam: 5’ 7”
Boat Only Weight: 2161 lbs
Max People: 12
Max Payload: 3153 lbs
Max HP: 300 hp
Fuel Tank: 60 gal
Transom: X-Long
Chambers: 6
Tube Dia: 23>>16”
Deadrise: 26°
PATROL 700
-
Overall Length:
Beam:
Inside Length:
Inside Beam:
Boat Only Weight:
Max People:
Max Payload:
Max HP:
Fuel Tank:
Transom:
Chambers:
Tube Dia:
Deadrise:
PATROL 660
-
Overall Length: 21’ 4”
Beam: 8’ 6”
Inside Length: 15’ 1”
Inside Beam: 4’ 5”
Boat Only Weight: 1631 lbs
Max People: 13
Max Payload: 2837 lbs
Max HP: 200 hp
Fuel Tank: 30 gal
Transom: X-Long
Chambers: 6
Tube Dia: 23>>16”
Deadrise: 26°
PATROL 600
-
Overall Length: 20’ 3”
Beam: 8’ 2”
Inside Length: 14’ 4”
Inside Beam: 4’ 4”
Boat Only Weight: 1530 lbs
Max People: 14
Max Payload: 3214 lbs
Max HP: 150 hp
Fuel Tank: 30 gal
Transom: X-Long
Chambers: 6
Tube Dia: 22>>16”
Deadrise: 26°
PATROL 540
-
Overall Length: 17’ 9”
Beam: 8’ 2”
Inside Length: 14’ 1”
Inside Beam: 4’ 4”
Boat Only Weight: 1089 lbs
Max People: 12
Max Payload: 2782 lbs
Max HP: 115 hp
Fuel Tank: 22.4 gal
Transom: X-Long
Chambers: 6
Tube Dia: 20”
Deadrise: 24°
PATROL 500
-
Overall Length: 16’ 5”
Beam: 7’ 6”
Inside Length: 13’ 8”
Inside Beam: 3’ 11”
Boat Only Weight: 972 lbs
Max People: 10
Max Payload: 2317 lbs
Max HP: 100 hp
Fuel Tank: 19 gal
Transom: Long
Chambers: 6
Tube Dia: 20”
Deadrise: 24°
PATROL 460
-
Overall Length: 15’ 1”
Beam: 6’ 11”
Inside Length: 11’ 7”
Inside Beam: 3’ 5”
Boat Only Weight: 631 lbs
Max People: 9
Max Payload: 2081 lbs
Max HP: 80 hp
Fuel Tank: 8.4 gal
Transom: Long
Chambers: 5
Tube Dia: 19”
Deadrise: 20°
PATROL 420
-
Overall Length: 13’ 10”
Beam: 6’ 11”
Inside Length: 10’ 5”
Inside Beam: 3’ 5”
Boat Only Weight: 556 lbs
Max People: 8
Max Payload: 1814 lbs
Max HP: 60 hp
Fuel Tank: 8.4 gal
Transom: Long
Chambers: 4
Tube Dia: 19”
Deadrise: 20°
PATROL SERIES Color Options

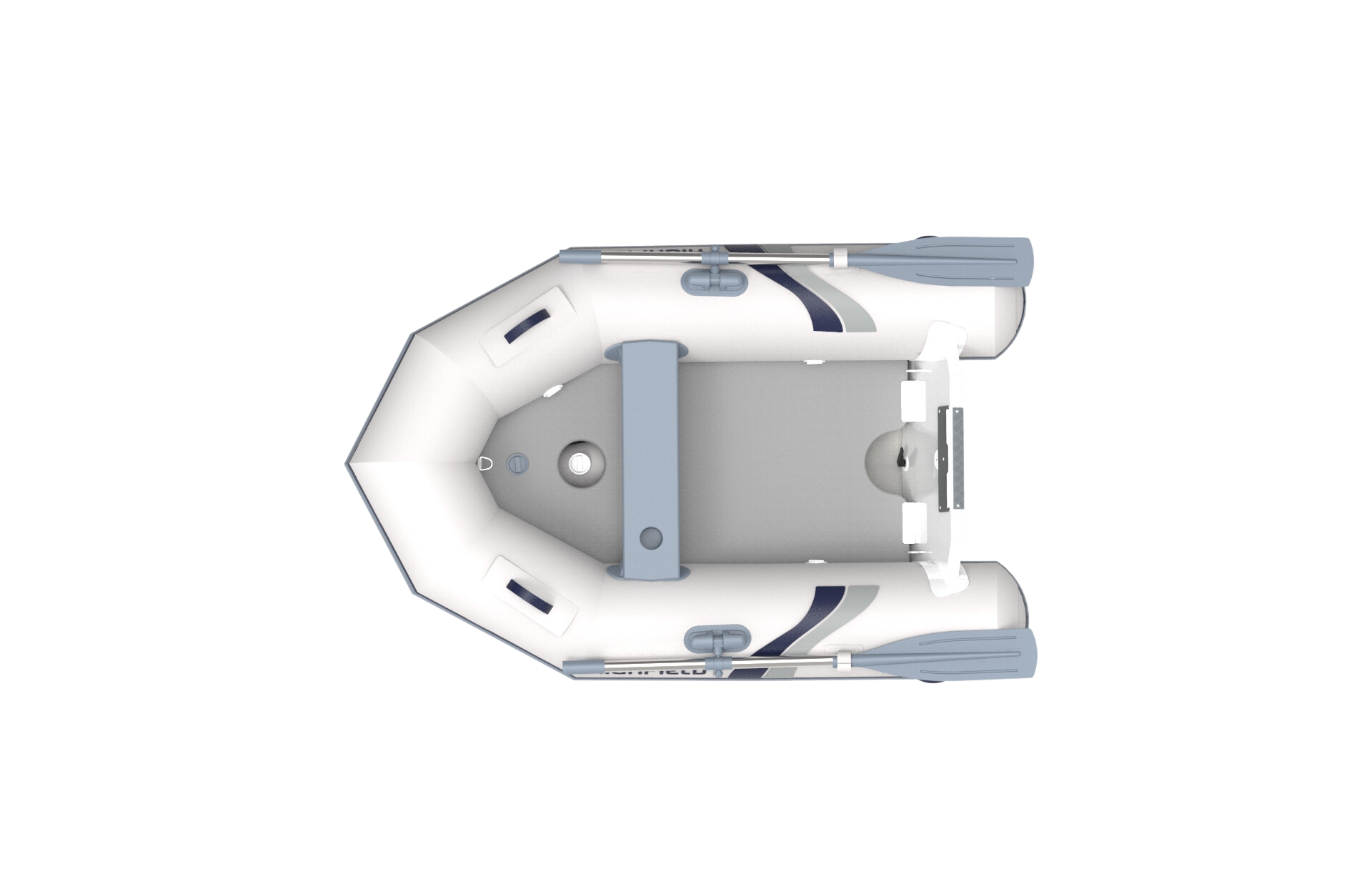

Roll Up Series
These great “stow-and-go” dinghies are perfect when space is limited. Available with inflatable or sectional aluminum floor, all models come with a powder coated aluminum transom. Total assembly from out of the bag to on the water can be done in less than 15 minutes.
AVAILABLE IN:
AIR FLOOR (AL)
ALUMINUM FLOOR (KAM)
Features:
-Removable and floatable bench seat with cup holder
-Stern lip trim tab for planing (includes lifting points direct to the transom)
-Comfortable grab handles for passengers & heavy duty grab handle for pulling
-Flush mount non-return valves
-Foot pump & repair kit included
320 AL
-
Length: 10’ 6”
Beam: 5’ 3”
Inside Length: 7’ 8”
Inside Beam: 2’ 4”
Weight: 106 lbs
Max People: 4 + 1
Max Payload: 1246 lbs
Max HP: 15 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Flooring: aluminum
280 AL
-
Length: 9’ 2”
Beam: 5’ 3”
Inside Length: 6’ 4”
Inside Beam: 2’ 4”
Weight: 93 lbs
Max People: 4
Max Payload: 1102 lbs
Max HP: 10 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Flooring: aluminum
250 AL
-
Length: 8’ 3”
Beam: 5’ 2”
Inside Length: 5’ 5”
Inside Beam: 2’ 4”
Weight: 82 lbs
Max People: 3
Max Payload: 992 lbs
Max HP: 6 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Flooring: aluminum
230 AL
-
Length: 7’ 7”
Beam: 4’ 7”
Inside Length: 5’ 2”
Inside Beam: 2’ 0”
Weight: 68 lbs
Max People: 2
Max Payload: 772 lbs
Max HP: 4 hp
Transom: Short
Chambers: 3
Tube Dia: 14”
Flooring: aluminum
200 AL
-
Length: 6’ 6”
Beam: 4’ 7”
Inside Length: 4’ 2”
Inside Beam: 2’ 0”
Weight: 62 lbs
Max People: 2
Max Payload: 551 lbs
Max HP: 3.5 hp
Transom: Short
Chambers: 3
Tube Dia: 14”
Flooring: aluminum
320 KAM
-
Length: 10’ 6”
Beam: 5’ 1”
Inside Length: 7’ 6”
Inside Beam: 2’ 4”
Weight: 79 lbs
Max People: 4 + 1
Max Payload: 1246 lbs
Max HP: 15 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Flooring: air deck
280 KAM
-
Length: 9’ 2”
Beam: 5’ 3”
Inside Length: 6’ 4”
Inside Beam: 2’ 4”
Weight: 73 lbs
Max People: 4
Max Payload: 1102 lbs
Max HP: 10 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Flooring: air deck
250 KAM
-
Length: 8’ 2”
Beam: 5’ 3”
Inside Length: 5’ 4”
Inside Beam: 2’ 4”
Weight: 66 lbs
Max People: 3
Max Payload: 992 lbs
Max HP: 6 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Flooring: air deck
230 KAM
-
Length: 7’ 7”
Beam: 4’ 6”
Inside Length: 5’ 1”
Inside Beam: 2’ 0”
Weight: 57 lbs
Max People: 2
Max Payload: 772 lbs
Max HP: 4 hp
Transom: Short
Chambers: 3
Tube Dia: 14”
Flooring: air deck
200 KAM
-
Length: 6’ 7”
Beam: 4’ 6”
Inside Length: 4’ 2”
Inside Beam: 2’ 0”
Weight: 53 lbs
Max People: 2
Max Payload: 551 lbs
Max HP: 3.5 hp
Transom: Short
Chambers: 3
Tube Dia: 14”
Flooring: air deck
ROLL UP SERIES Color Options
WHITE & GRAY
ULTRALITE Series
The Ultralite Series RIBs are the ultimate in lightweight and durability. Aluminum hulls that are chromated before powder coating so they will last a lifetime. If weight, durability and reliability are important to you these boats are exactly what you need.
SS = Space Saver design with 15” tube diameter and narrower beam
LT = Large Tube, with 17” tube diameter
FD = Flat Deck
UL 340 FD
-
Length: 11’ 1”
Beam: 5’ 7”
Inside Length: 8’ 0”
Inside Beam: 2’ 7”
Weight: 117 lbs
Max People: 5+1
Max Payload: 1462 lbs
Max HP: 20 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
UL 310 FD
-
Length: 10’ 3”
Beam: 5’ 7”
Inside Length: 7’ 4”
Inside Beam: 2’ 7”
Weight: 110 lbs
Max People: 5
Max Payload: 1290 lbs
Max HP: 15 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
UL 290 FD
-
Length: 9’ 5”
Beam: 5’ 7”
Inside Length: 6’ 8”
Inside Beam: 2’ 7”
Weight: 99 lbs
Max People: 4
Max Payload: 882 lbs
Max HP: 15 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadride: 15°
UL 290 LT
-
Length: 9’ 5”
Beam: 5’ 7”
Inside Length: 6’ 8”
Inside Beam: 2’ 7”
Weight: 95 lbs
Max People: 4
Max Payload: 882 lbs
Max HP: 15 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadrise: 15°
UL 260 LT
-
Length: 8’ 7”
Beam: 5’ 7”
Inside Length: 5’ 11”
Inside Beam: 2’ 7”
Weight: 80 lbs
Max People: 3+1
Max Payload: 788 lbs
Max HP: 10 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadrise: 10.5°
UL 240 LT
-
Length: 7’10”
Beam: 5’ 6”
Inside Length: 5’ 3”
Inside Beam: 2’ 7”
Weight: 74 lbs
Max People: 3
Max Payload: 653 lbs
Max HP: 6 hp
Transom: Short
Chambers: 3
Tube Dia: 17”
Deadrise: 10.5°
UL290 SS
-
Length: 9’ 6”
Beam: 5’ 1”
Inside Length: 7’ 0”
Inside Beam: 2’ 6”
Weight: 86 lbs
Max People: 4
Max Payload: 827 lbs
Max HP: 10 hp
Transom: Short
Chambers: 3
Tube Dia: 15”
Deadrise: 15°
UL260 SS
-
Length: 8’ 6”
Beam: 5’ 1”
Inside Length: 6’ 0”
Inside Beam: 2’ 6”
Weight: 77 lbs
Max People: 3+1
Max Payload: 750 lbs
Max HP: 6 hp
Transom: Short
Chambers: 3
Tube Dia: 15”
Deadrise: 10.5°
UL240 SS
-
Length: 7’10”
Beam: 5’ 1”
Inside Length: 5’ 4”
Inside Beam: 2’ 7”
Weight: 72 lbs
Max People: 3
Max Payload: 653 lbs
Max HP: 6 hp
Transom: Short
Chambers: 3
Tube Dia: 15”
Deadrise: 10.5°
UL220 SS
-
Length: 7’ 3”
Beam: 5’ 0”
Inside Length: 4’ 9”
Inside Beam: 2’ 6”
Weight: 65 lbs
Max People: 3
Max Payload: 653 lbs
Max HP: 5 hp
Transom: Short
Chambers: 3
Tube Dia: 15”
Deadrise: 10.5°

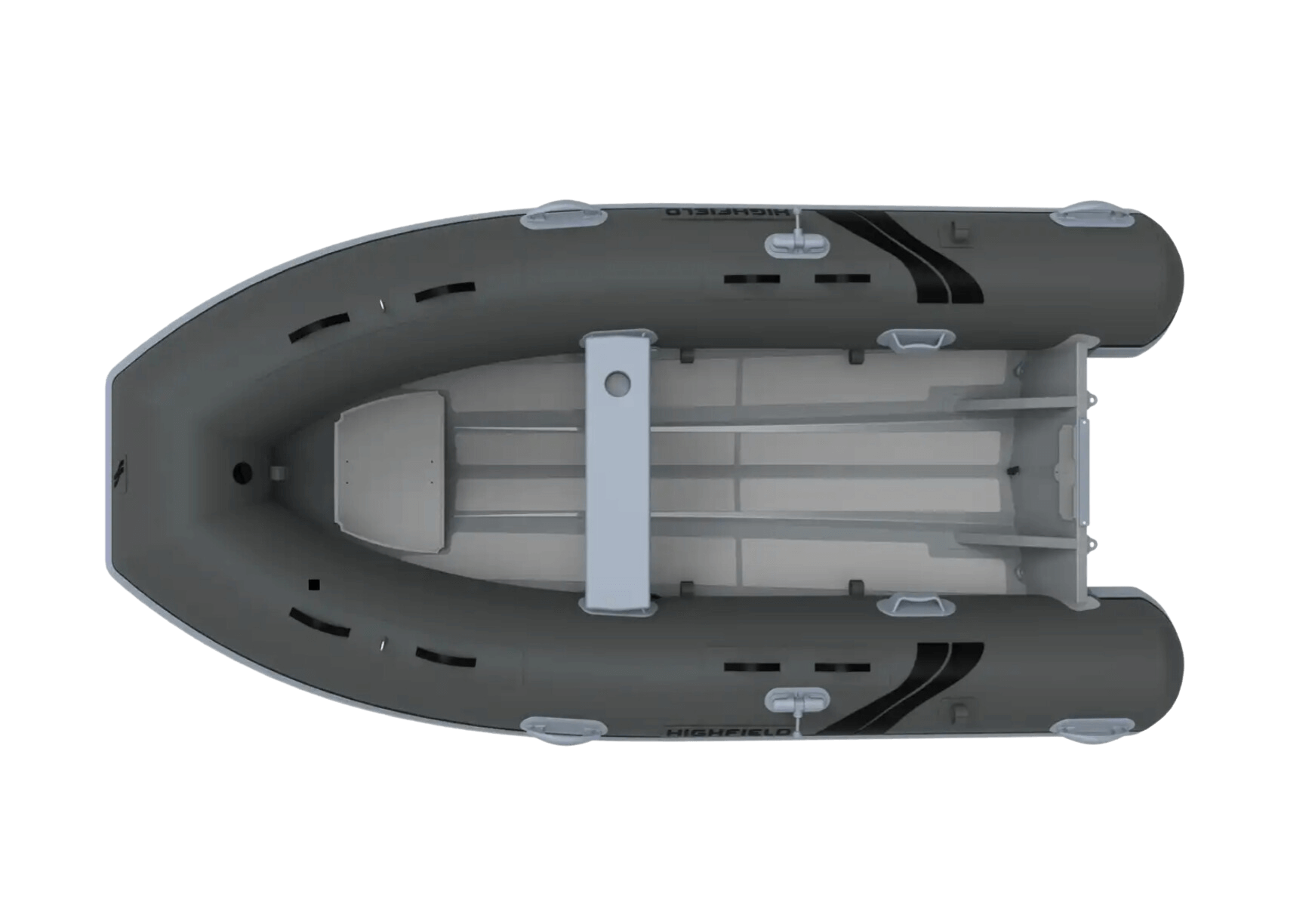

ULTRALITE SERIES Color Options
Want to learn more about Highfield?
> Head to their YouTube channel to watch the boats you love in action
> Download the latest brochure for more specs and renderings of Highfield’s complete selection
Photos and information courtesy of Highfield North America ©
